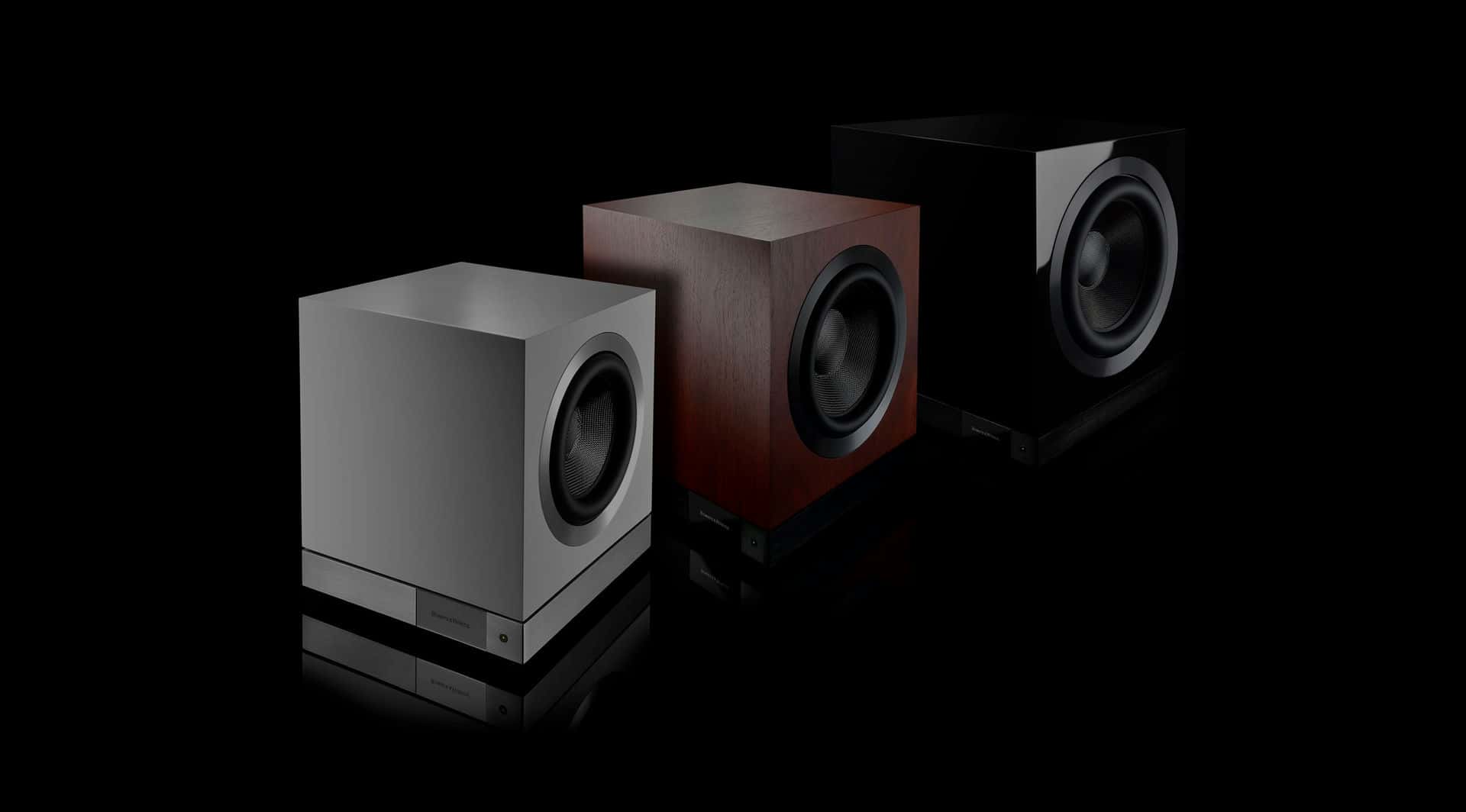

Subwoofers
.webp)
DB1D
Combining 2000W of digital amplification with two balanced Aerofoil™ drivers for incredible low-frequency power and speed, the DB1D is the ultimate Bowers & Wilkins subwoofer.
.webp)
DB2D
Using the same 10-inch drivers as the flagship 800 D4 speakers and a highly efficient 1000W amplifier, the DB2D employs intelligent DSP to optimize bass in any room.
.png)
DB3D
Despite its compact size, the DB3D delivers remarkably powerful, controlled bass thanks to dual 8-inch Aerofoil™ drivers, a 1000W amplifier, and digital signal processing.
.webp)
DB4S
With powerful 1000W digital amplification, the DB4S delivers all the rumble and impact needed to bring your home theater to life.
ASW610XP
The most powerful subwoofer in the 600 Series drives a 500W 10-inch paper/aramid fiber cone.
ASW610
This 200W subwoofer features a 10-inch paper/aramid fiber cone and is ideal for Hi-Fi systems or home theaters.
ASW608
Our most compact subwoofer is the perfect match for the 600 Series or as part of a Mini Theater system.

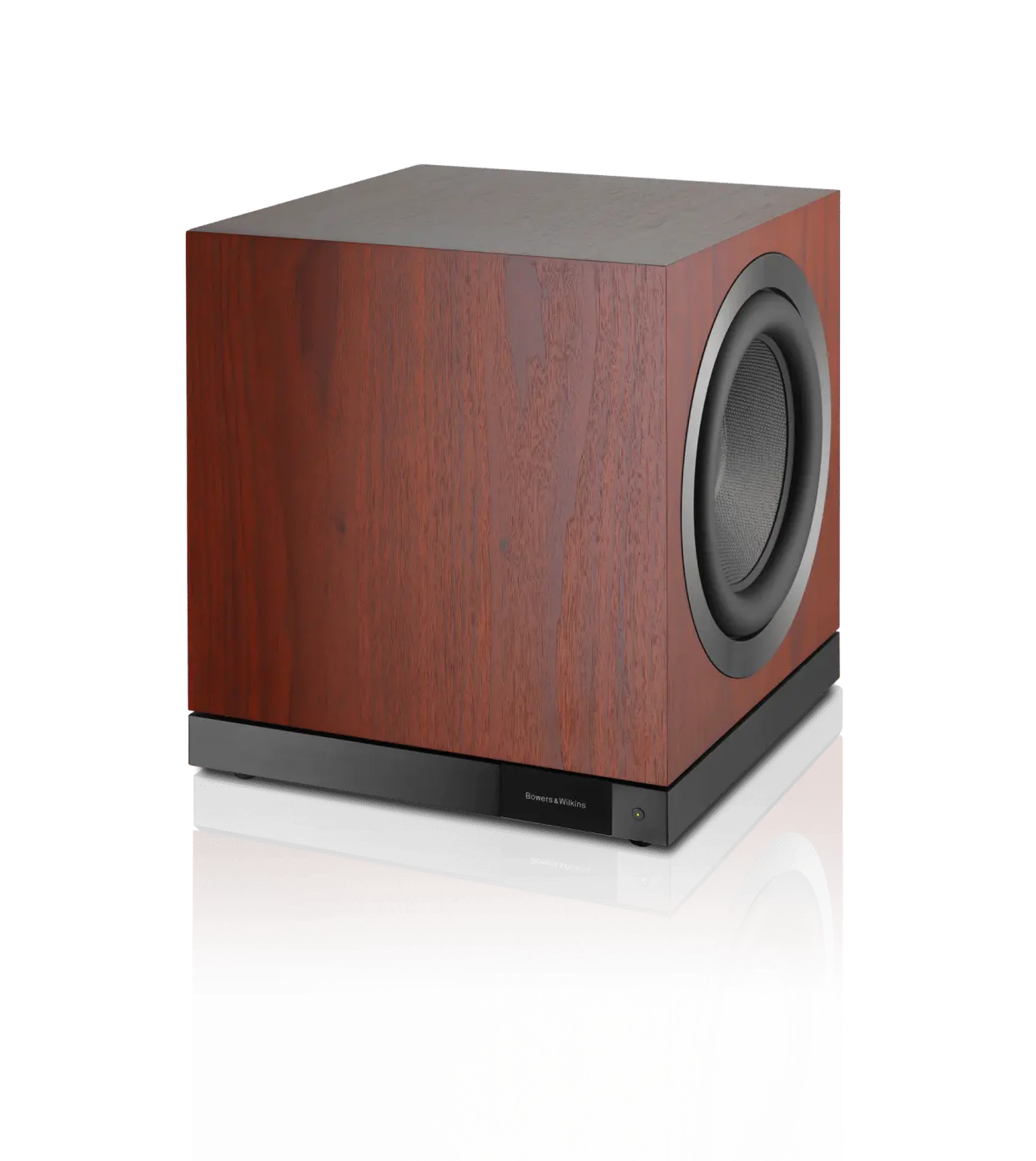

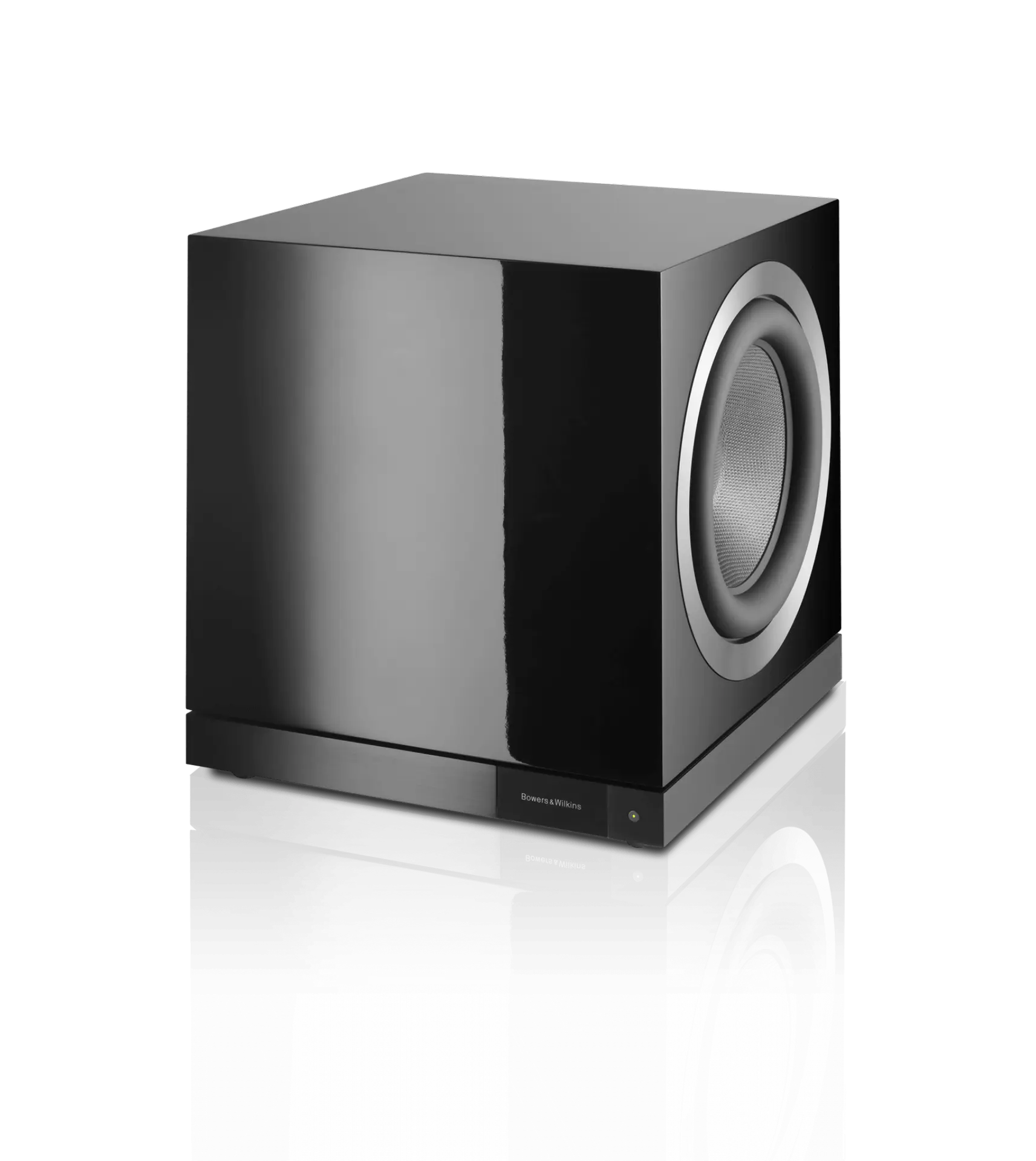

DB1D
Combining 2000W of digital amplification with two balanced Aerofoil™ drivers for incredible low-frequency power and speed, the DB1D is the ultimate Bowers & Wilkins subwoofer.
Smart Bass Engineering
The DB1D’s 2000W amplifier and 12-inch drivers are intelligently controlled for class-leading bass performance.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 460 mm
- Width: 429 mm
- Depth: 410 mm
Weight
- Weight: 43 kg
Technical Details
Features
- 2000W Hypex Class D amplifier
- Two 300 mm (12 inch) Aerofoil™ drivers in balanced configuration
- Digital pre-amplifier with app-based Dynamic EQ and BT-LE control
Description
- DB Series Subwoofer
Drivers
- 2 x 300 mm (12 inch) Aerofoil™ drivers in balanced configuration
Frequency Response
- -6 dB at 8.5 Hz – 500 Hz
Frequency Range
- 10 Hz – 350 Hz -3 dB (centered at 100 Hz)
Maximum Output Power
- 2000 W
Inputs
- 2 x XLR
- 2 x RCA
- 2 x 3.5 mm 12V trigger
- RS-232 – 9-pin D-sub

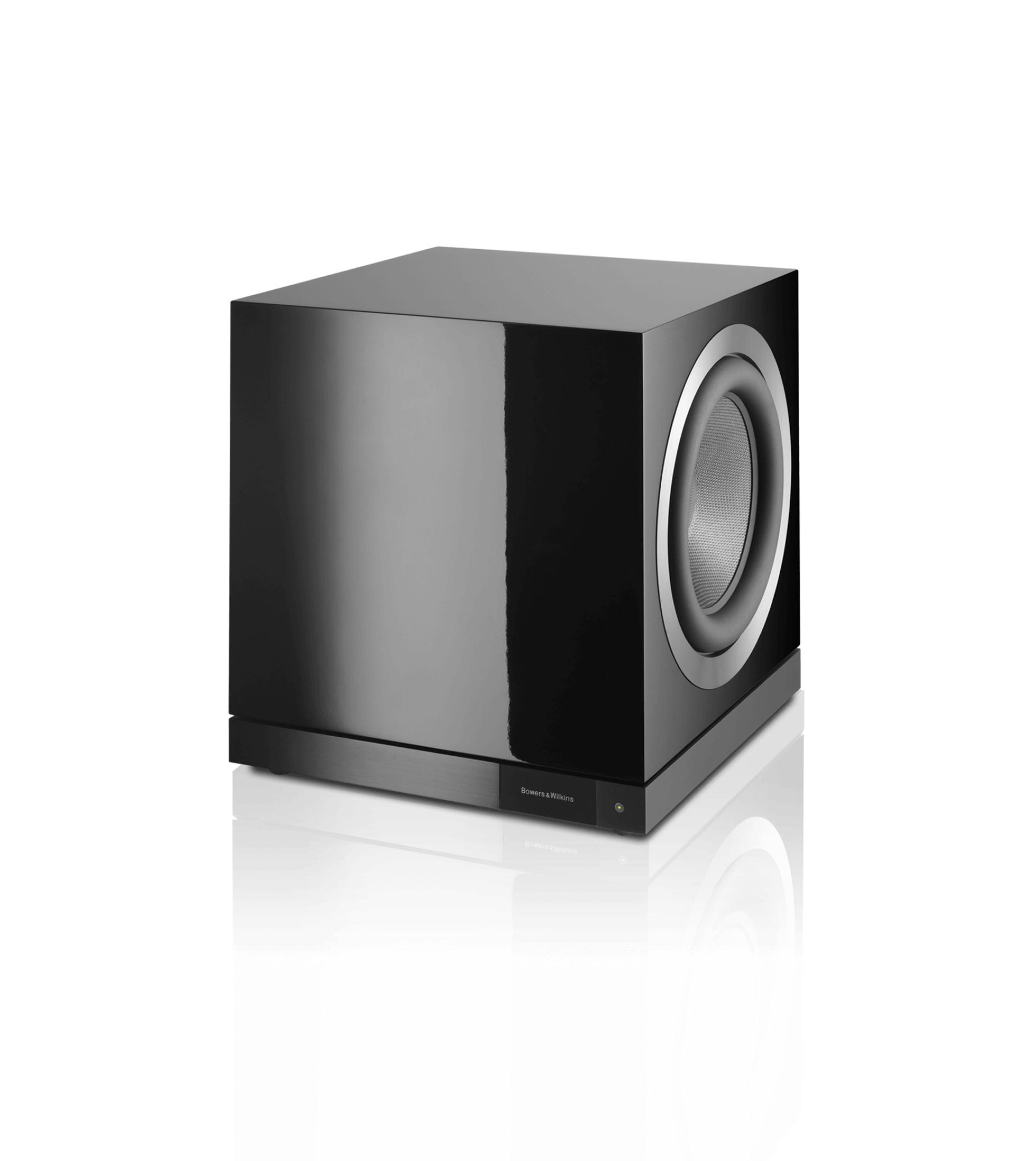

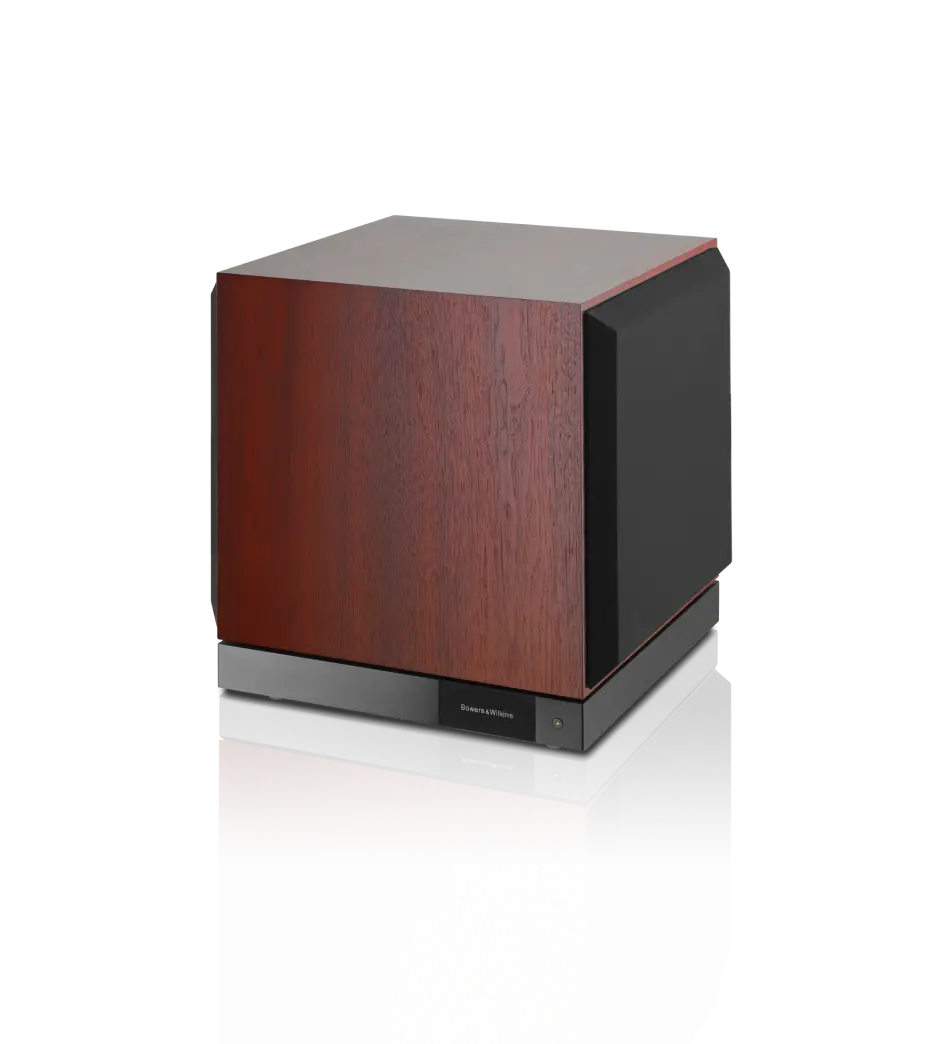

DB2D
The new 703 S3 now features our iconic Tweeter-on-Top configuration, along with a midrange driver featuring a FST™ Continuum cone with an improved, revolutionary biomimetic suspension, and two Aerofoil Profile woofers.
Power and Control
DB2D’s digital signal processing delivers clarity and control for cinematic effects and enhanced music reproduction.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 430 mm
- Width: 377 mm
- Depth: 360 mm
Weight
- Weight: 36 kg
Technical Details
Features
- 1000W Hypex Class D amplifier
- Two 250 mm (10 inch) Aerofoil™ drivers in balanced configuration
- Digital pre-amplifier with app-based Dynamic EQ and BT-LE control
Description
- DB Series Subwoofer
Drivers
- 2 x 250 mm (10 inch) Aerofoil™ cone drivers in balanced configuration
Frequency Response
- -6 dB at 8.5 Hz – 500 Hz
Frequency Range
- 10 Hz – 350 Hz -3 dB (centered at 100 Hz)
Maximum Output Power
- 1000 W
Inputs
- 2 x XLR
- 2 x RCA
- 2 x 3.5 mm 12V trigger
- RS-232 – 9-pin D-sub

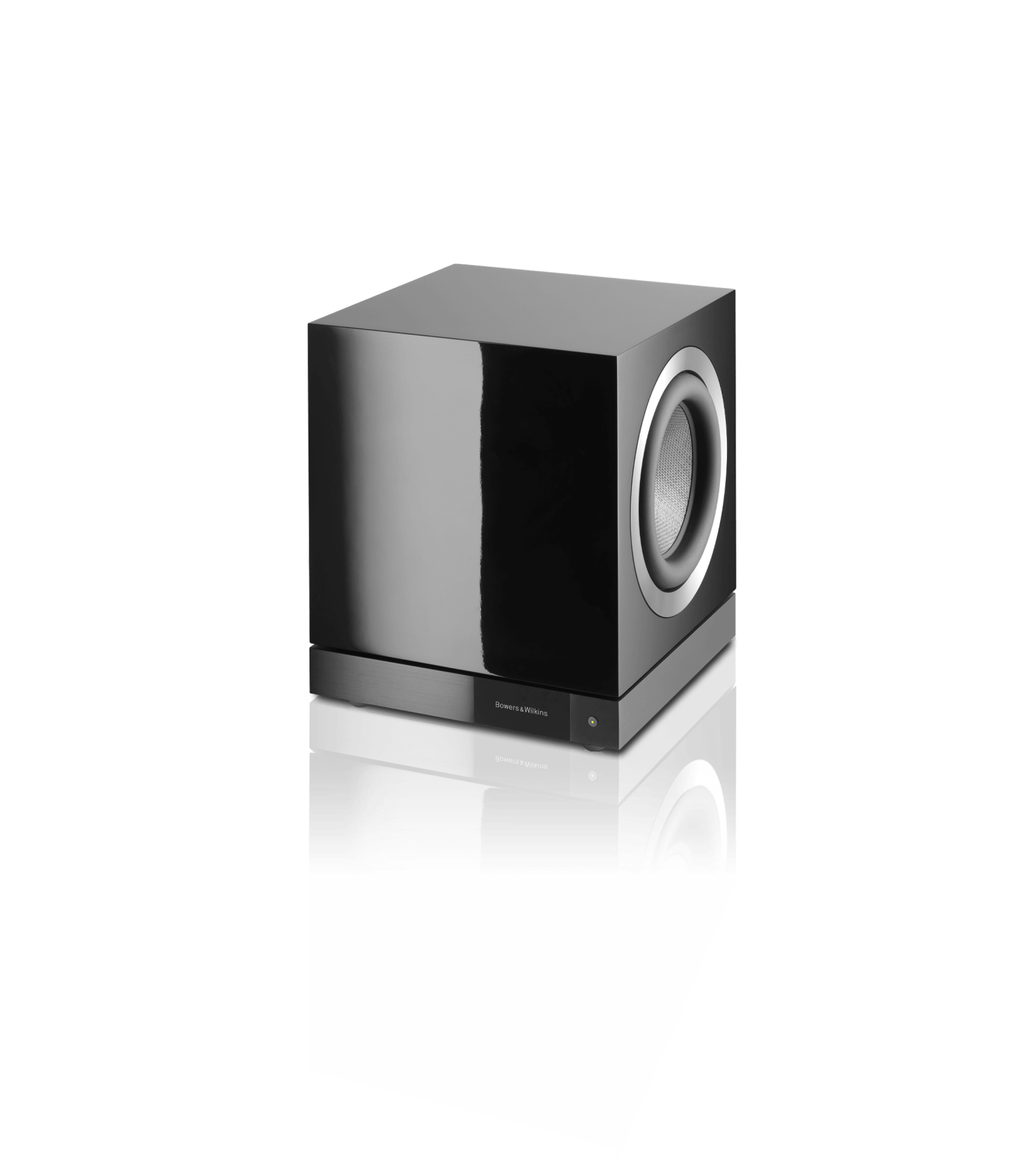

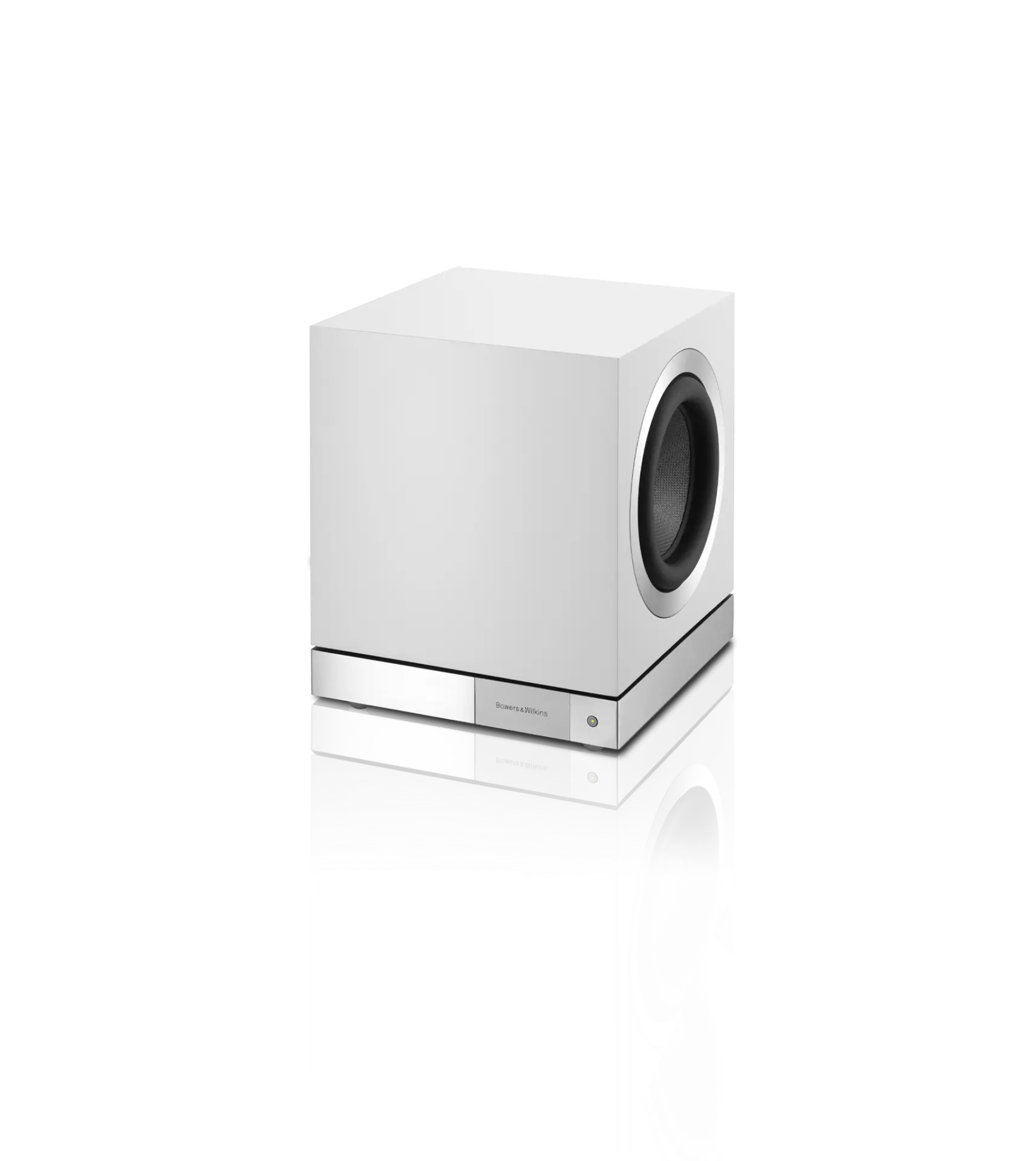

DB3D
Despite its compact size, the DB3D delivers remarkably powerful, controlled bass thanks to dual 8-inch Aerofoil™ drivers, a 1000W amplifier, and digital signal processing.
More Bass, Less Space
This compact model packs a powerful punch. The controlled, impressive bass from such a small subwoofer makes it suitable for placement almost anywhere — the DB3D is a high-performance compact design.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 360 mm
- Width: 320 mm
- Depth: 300 mm
Weight
- Weight: 25 kg
Technical Details
Features
- 1000W Hypex Class D amplifier
- Two 200 mm (8 inch) Aerofoil™ drivers in balanced configuration
- Digital pre-amplifier with app-based Dynamic EQ and BT-LE control
Description
- DB Series Subwoofer
Drivers
- 2 x 200 mm (8 inch) Aerofoil™ cone drivers in balanced configuration
Frequency Response
- -6 dB at 8.5 Hz – 500 Hz
Frequency Range
- 10 Hz – 350 Hz -3 dB (centered at 100 Hz)
Maximum Output Power
- 1000 W
Inputs
- 2 x XLR
- 2 x RCA
- 2 x 3.5 mm 12V trigger
- RS-232 – 9-pin D-sub

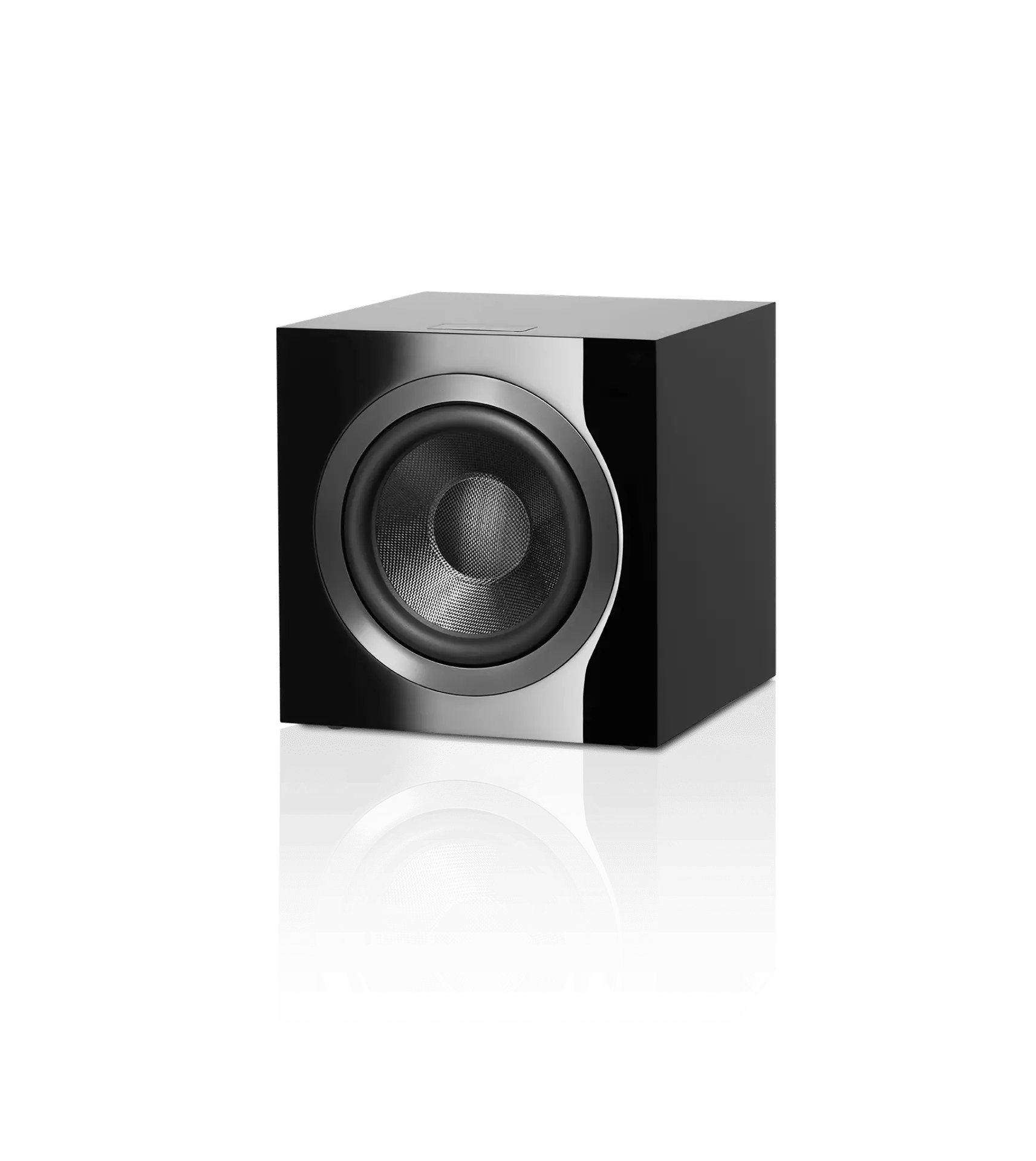

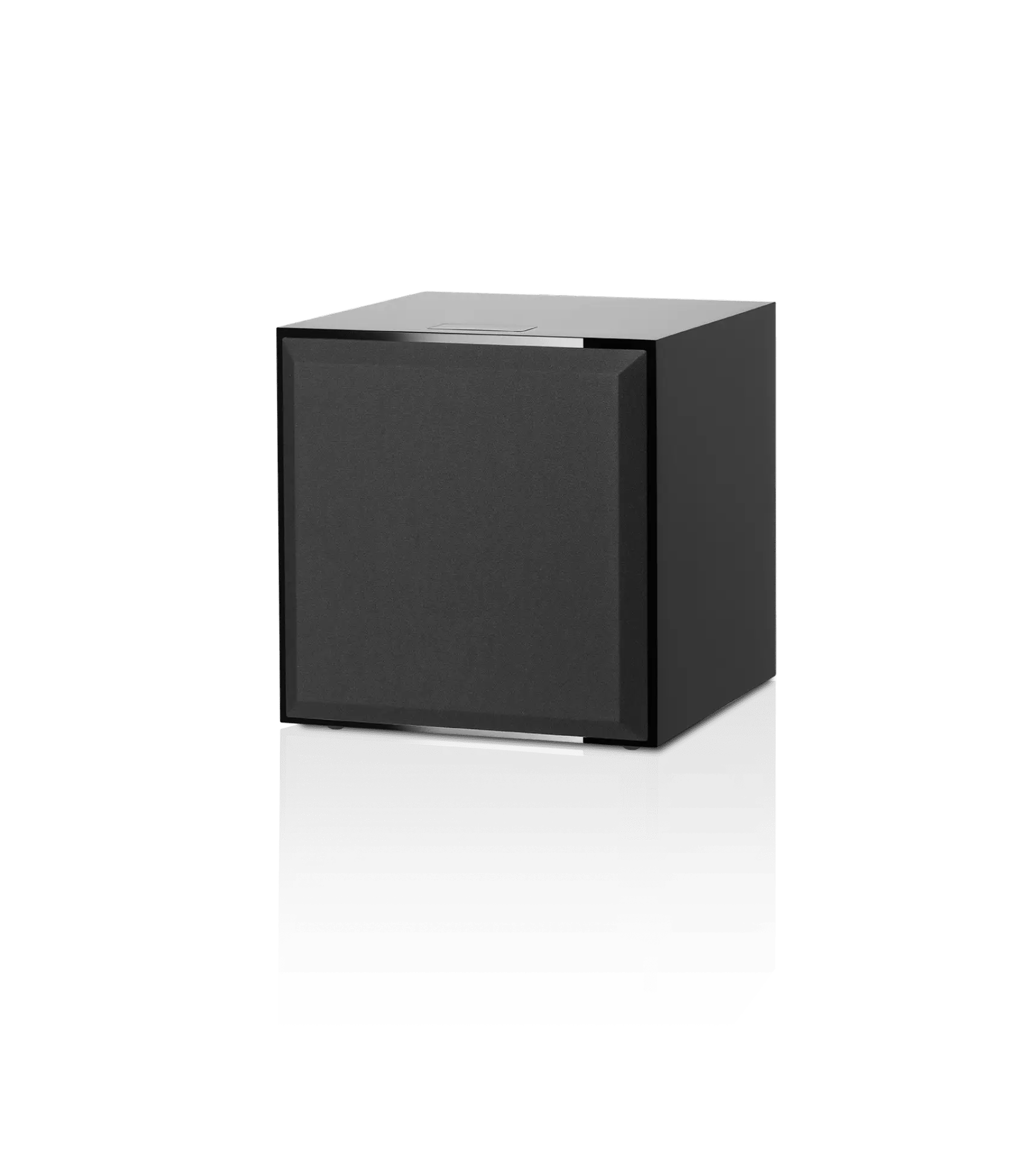

DB4S
Give your home theater the bass it deserves with the DB4S — a powerful single-driver subwoofer in classic style, perfectly matched to the 700 Series.
Fast and Powerful
Firm, expressive bass is delivered by the rigidity and lightness of the uniquely shaped, variable-thickness Aerofoil™ cone.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 377 mm
- Width: 360 mm
- Depth: 368 mm
Weight
- Weight: 26 kg
Technical Details
Features
- 1000W Hypex Class D amplifier
- 1 x ø250 mm (10 inch) Aerofoil™ bass cone
- Digital pre-amplifier with app-based Dynamic EQ and BT-LE control
Description
- Closed-box active subwoofer system
Drivers
- 1 x ø250 mm (10 inch) Aerofoil™ bass cone
Frequency Response
- -6 dB at 8.5 Hz – 500 Hz
Frequency Range
- 10 Hz – 350 Hz -3 dB (centered at 100 Hz)
Sensitivity
- 1/8 rated power: 195 W
- Standby mode: <0.5 W
Maximum Output Power
- 1000 W
Inputs
- 2 x XLR
- 2 x RCA
- 2 x 3.5 mm 12V trigger
- RS-232 – 9-pin D-sub
Input Impedance
- RCA: 10 kΩ
- XLR: 20 kΩ
Signal/Noise
- 82 dB

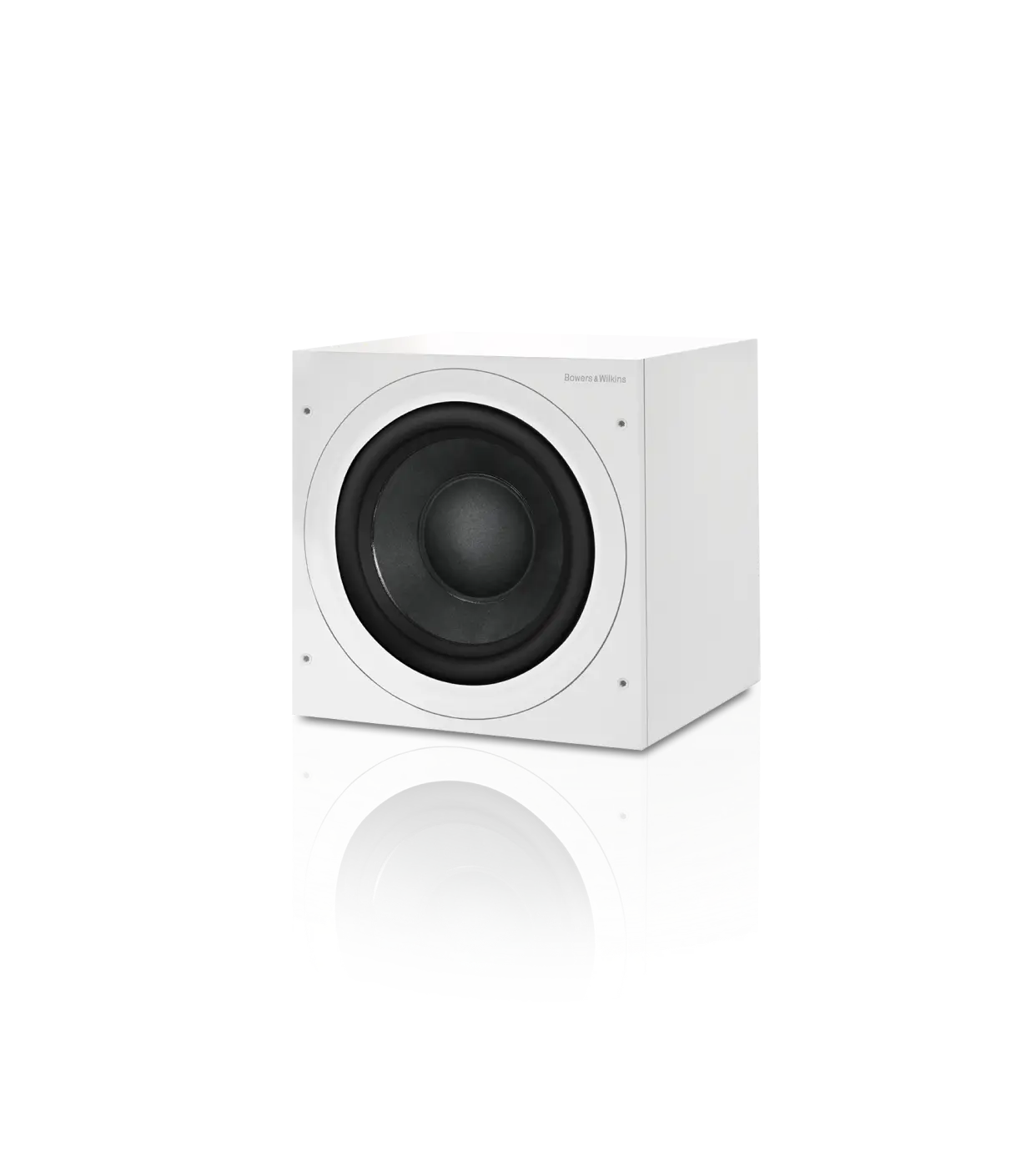

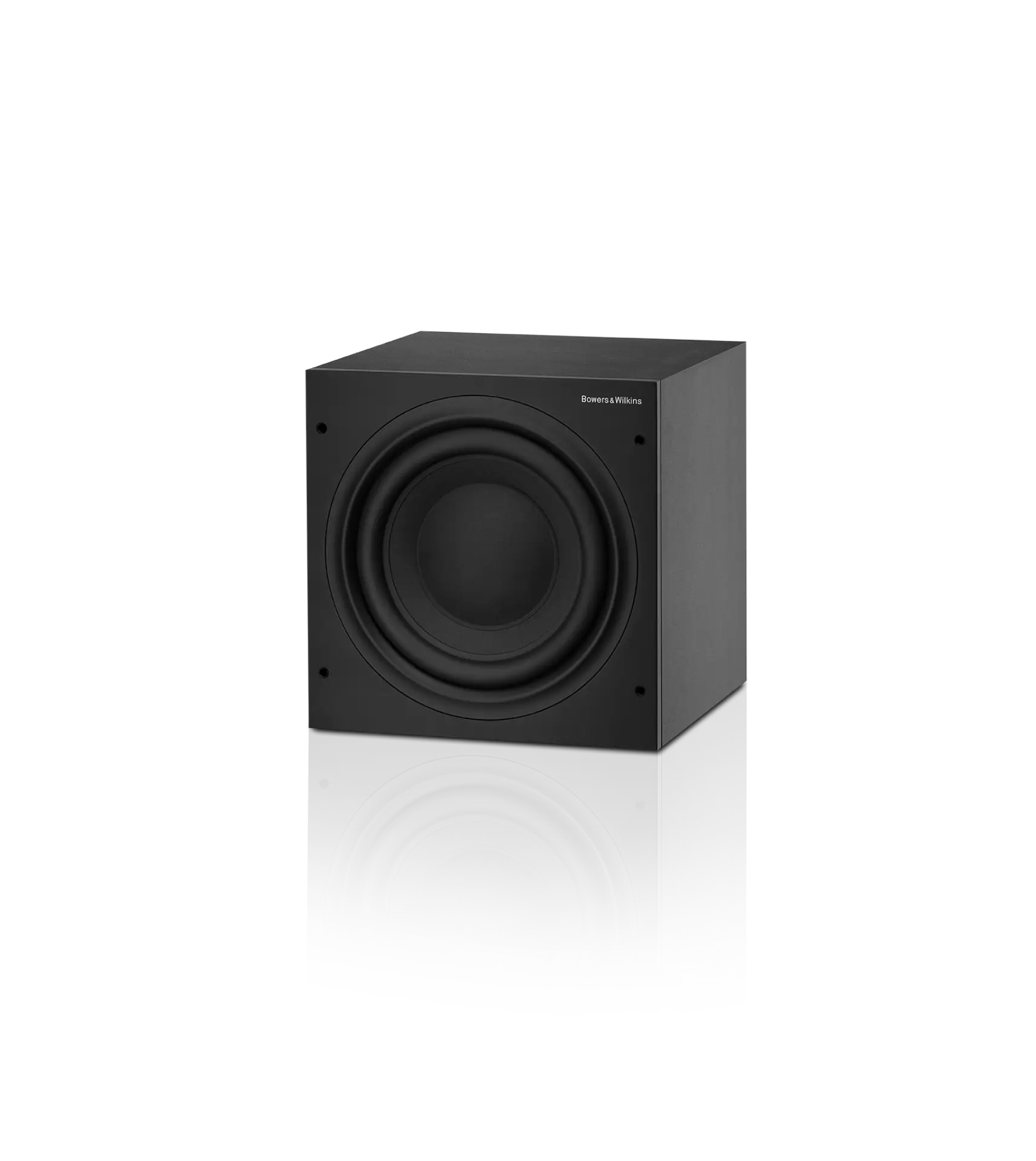

ASW610XP
The ASW610XP, the most powerful subwoofer in the 600 Series, delivers the final touch — or final punch — to a Hi-Fi system or home theater for large rooms.
Tuned for Powerful Bass
A single large driver isn’t enough: the ASW610XP combines paper, aramid fiber, and resin to ensure rigidity and precision.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 325 mm
- Width: 325 mm
- Depth: 348 mm
Weight
- Weight: 18.65 kg
Technical Details
Features
- Input signal level (line input)
- Input signal level (speaker input)
- Low-pass filter frequency (line input only)
- Low-pass filter bypass / Bass extension
- Bass roll-off equalization
- Auto on / standby detection
- Phase switch
Description
- Closed-box active subwoofer system
Drivers
- ø250 mm (10 inch), paper/aramid fiber cone, long-throw
Frequency Response
- -6 dB at 18 Hz, 25/140 Hz adjustable (EQ on A)
Frequency Range
- ±3 dB 25 Hz – 40 / 140 Hz adjustable (EQ on A)
Bass Extension
- -6 dB at 18 Hz (Position A)
- -6 dB at 23 Hz (Position B)
- -6 dB at 28 Hz (Position C)
Amplifier Output Power
- 500 W
Power Consumption
- 98 W / 1 W standby
Input Impedance
- 33 kΩ
Signal/Noise
- >80 dB

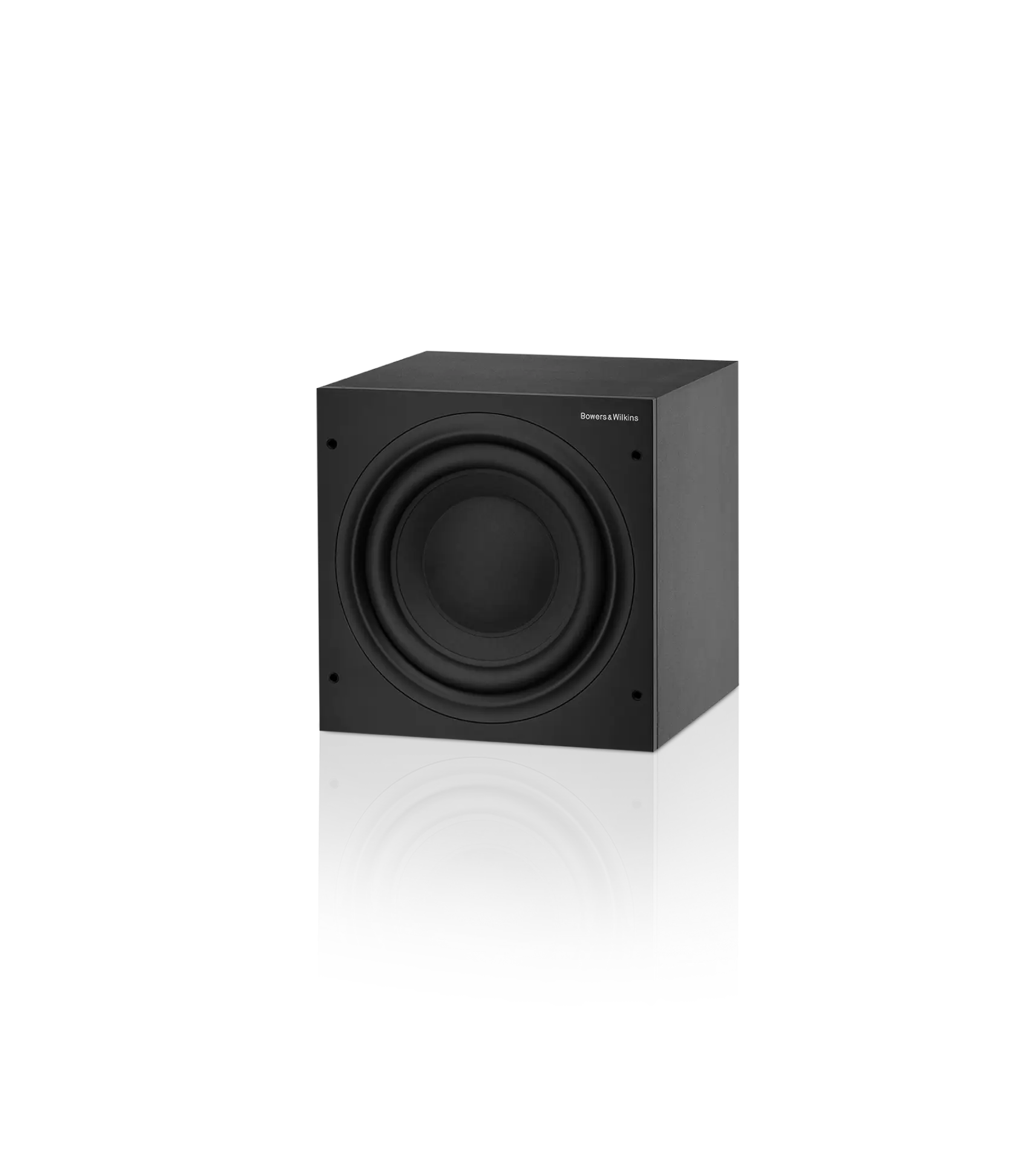

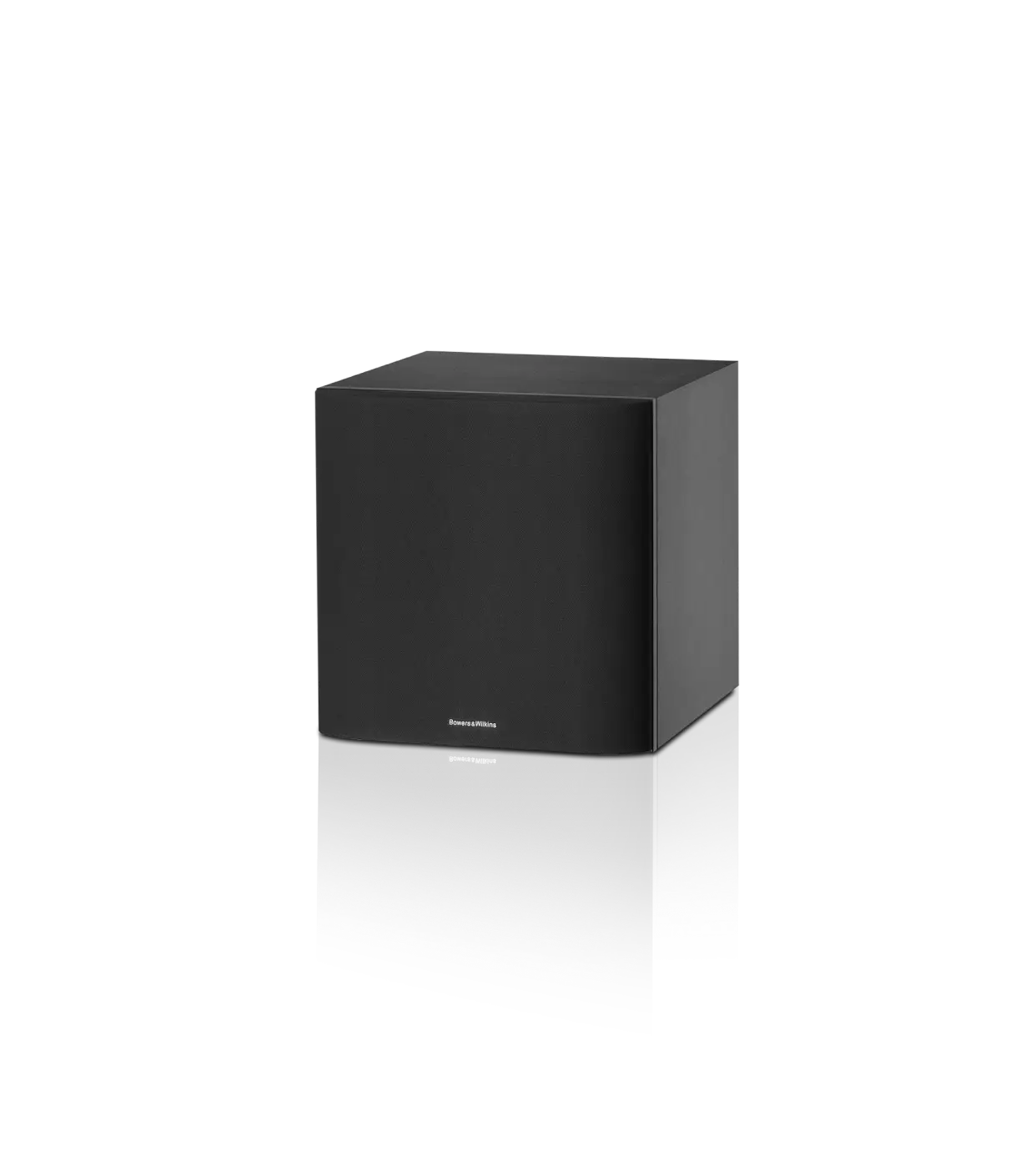

ASW610
The ASW610’s 250 mm long-throw driver moves the large volumes of air needed for high-quality low-frequency output, while its 200W Class D amplifier, meeting audiophile standards, ensures compact cooling.
Fill the Room with Bass — Not Speakers
The ASW610 is compact, making it a subwoofer you can place anywhere. Or perhaps use two for greater bass control?
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 338 mm
- Width: 310 mm
- Depth: 375 mm
Weight
- Weight: 12.5 kg
Technical Details
Features
- Input signal level (line input)
- Input signal level (speaker input)
- Low-pass filter frequency (line input only)
- Low-pass filter bypass / Bass extension
- Bass roll-off equalization
- Auto on / standby detection
- Phase switch
Description
- Closed-box active subwoofer system
Drivers
- ø250 mm (10 inch), paper/aramid fiber cone, long-throw
Frequency Response
- -6 dB at 20 Hz, 25/140 Hz adjustable (EQ on A)
Frequency Range
- ±3 dB 27 Hz – 40 / 140 Hz adjustable (EQ on A)
Bass Extension
- -6 dB at 20 Hz (Position A)
- -6 dB at 25 Hz (Position B)
- -6 dB at 30 Hz (Position C)
Amplifier Output Power
- 200 W
Power Consumption
- 40 W / 0.5 W standby
Input Impedance
- 33 kΩ
Signal/Noise
- >90 dB
Inputs
- Line input (RCA Phono)
- Speaker input (terminal)
- 12V trigger (3.5 mm jack)
- Low-pass filter
- Active 4th-order, variable cutoff frequency

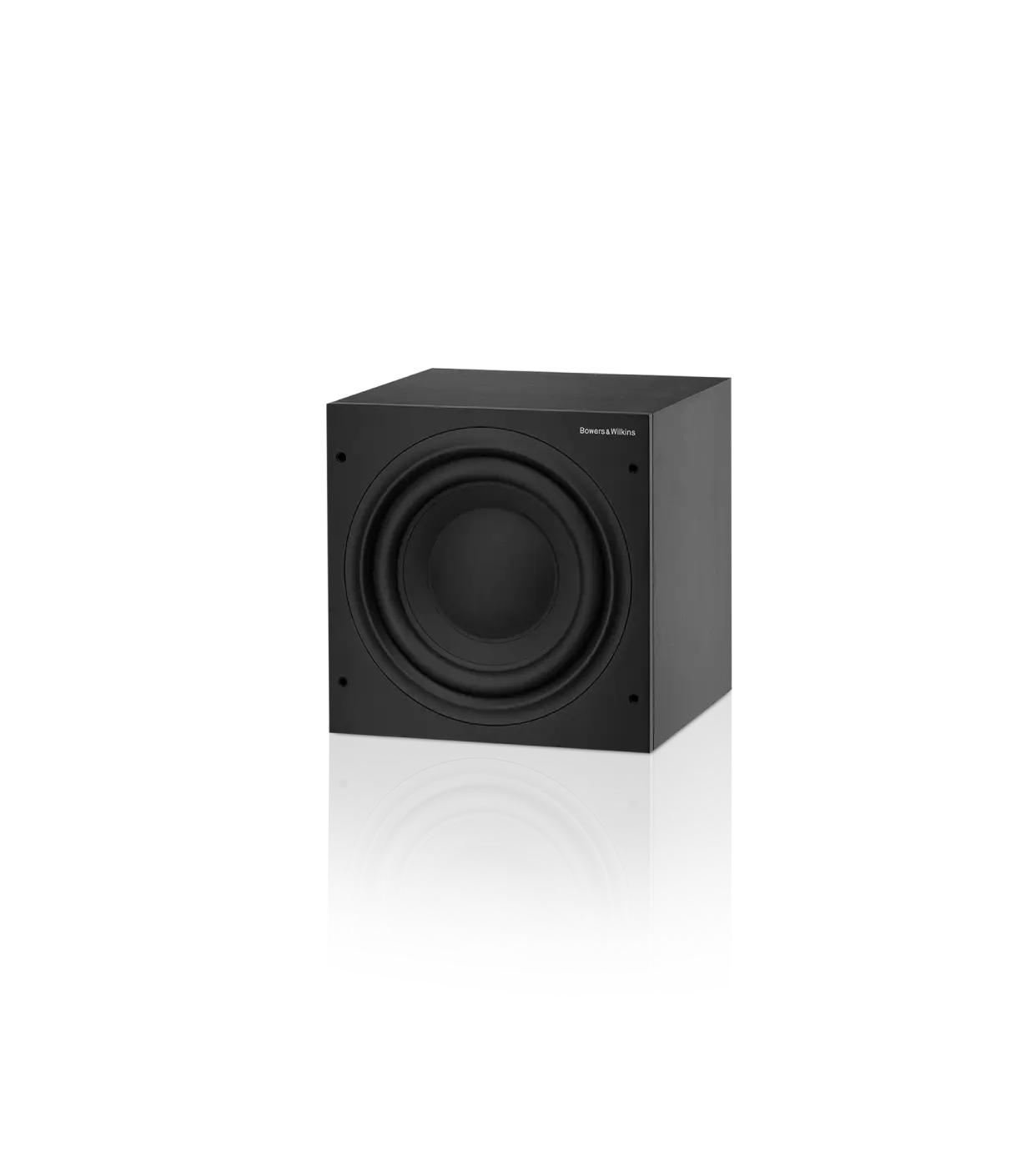

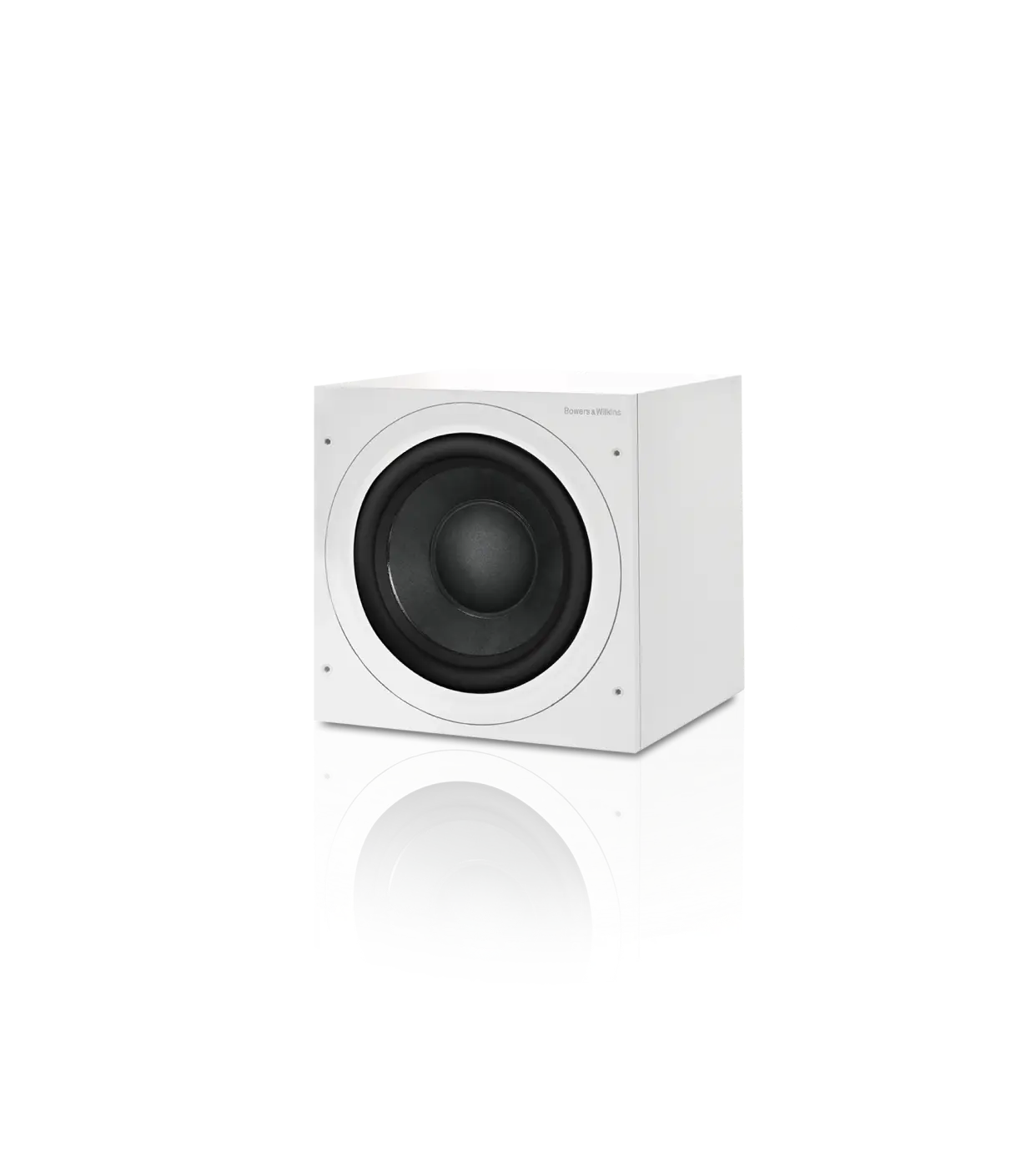

ASW608
For powerful sound in small rooms, the ASW608 — the most compact subwoofer in the 600 Series — is ideal.
Mighty Mini
The 8-inch driver in the ASW608 is designed for fast, tight, and dramatic bass — even in very small spaces.
Powerful
Beneath its compact shell, the ASW608 hides a powerful amplifier that lets it deliver a strong impact with music and movies.
Technical Specifications
SpecificationsDimensions and Weight
Size
- Height: 288 mm
- Width: 260 mm
- Depth: 330 mm
Weight
- Weight: 8.85 kg
Technical Details
Features
- Extra Bass
- Bass Roll-off Setting
- Auto Sensor On / Standby
- Phase Switch
Description
- Active Closed-Box Subwoofer System
Drivers
- 200 mm (8 inch) paper/aramid fiber cone
Amplifier Output Power
- 200 W
Power Consumption
- 40 W / 0.5 W standby
Input Impedance
- 33 kΩ
Signal/Noise
- >90 dB
Inputs
- Stereo input (RCA Phono)
- Speaker input (terminal)
- 12V trigger (3.5 mm jack)
