Subwoofers
Sub (Gen 3)
Feel the difference when you add Sub to your Sonos system — deep, powerful bass that transforms every movie, song, and game.
Sub Mini
Elevate your TV, movie, and music experience with Sub Mini — the compact powerhouse designed to pair with Beam, Ray, Era 100, One, or One SL.

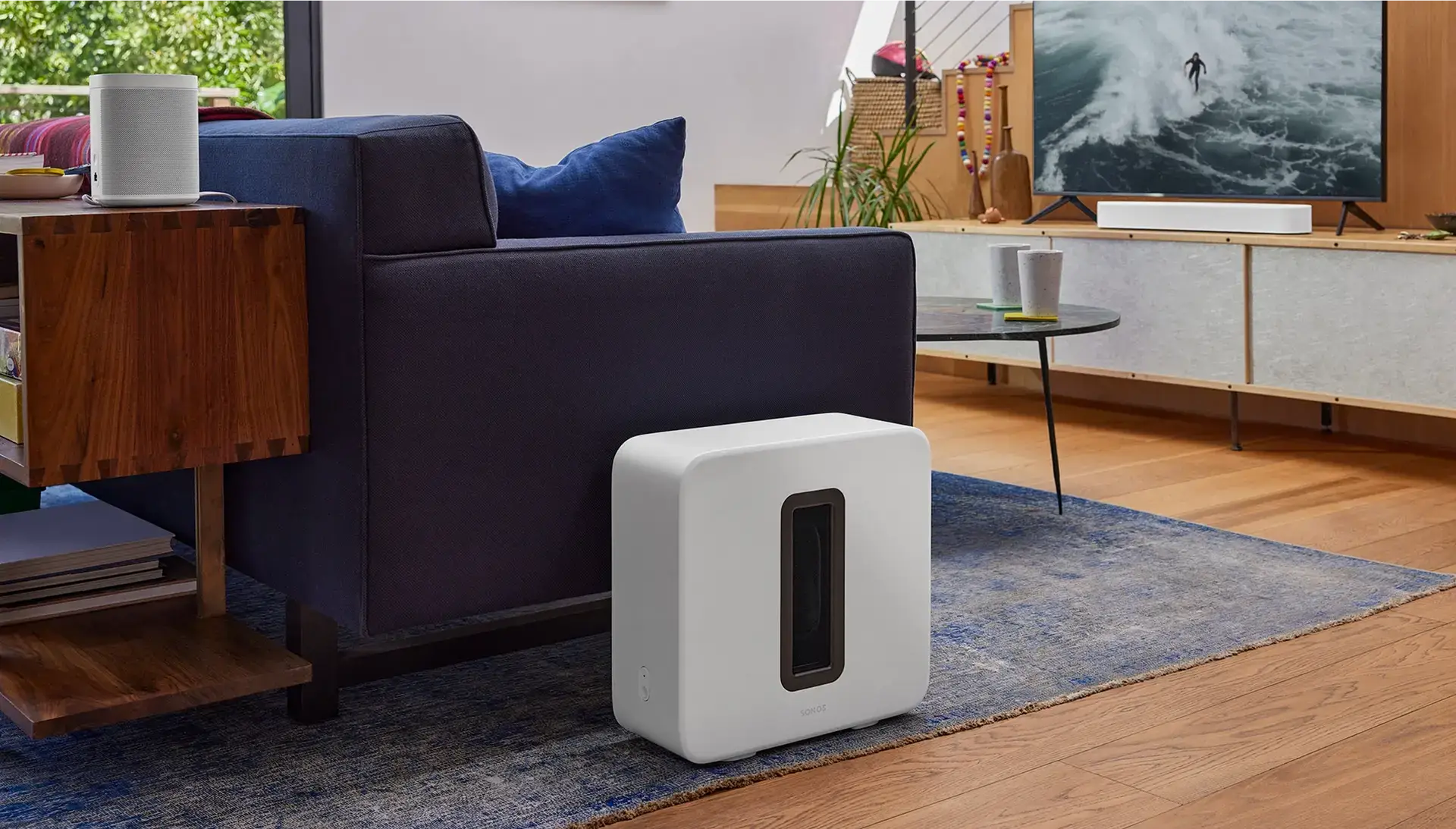

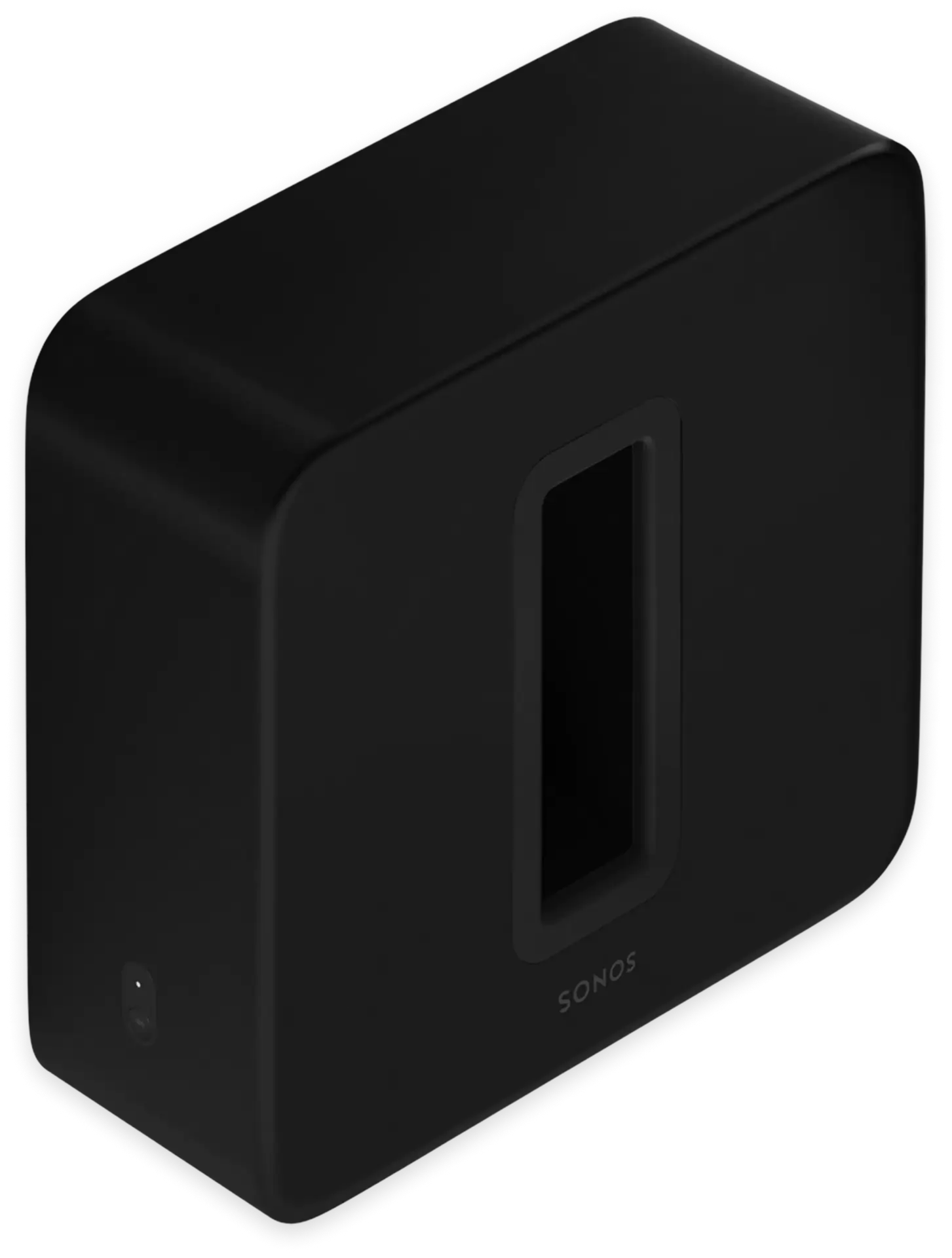

Sub (Gen 3)
Feel every rumble, roar, and beat you’ve been missing — with clean, pulsing bass that moves the room.
Maximum Impact
The Sub takes on the lowest frequencies, allowing your paired Sonos speakers to focus on mid and high frequencies — delivering richer, more powerful sound.
Specifications
SpecificationsAudio
Amplifiers
- Two precisely tuned Class D digital amplifiers matched to the subwoofer’s unique acoustic architecture.
Ports
- Dual acoustic ports precisely tuned for enhanced bass performance.
Frequency Response
- Down to 25 Hz
Equalizer
- Audio settings automatically balance the Sub with your paired Sonos speakers or components. Use the Sonos app to adjust bass, treble, and volume.
Trueplay Tuning
- This software measures your room’s acoustics and precisely tunes your entire Sonos system. Requires a supported iOS device.
Details + Dimensions
Dimensions
- 389 x 402 x 158 mm
Weight
- 13.15 kg (29 lbs)
Colors
- Black & White
Power & Connectivity
Wi-Fi
- Connect to Wi-Fi using any 802.11a/b/g/n 2.4 or 5 GHz router with broadcast support.
Ethernet
- 10/100 Ethernet port for wired connection to your router.
Voltage
- 100–240 V, 50/60 Hz internal power supply
Processor
- Quad-core 1.5 GHz
Memory
- 256 MB SDRAM
- 256 MB NAND Flash
Operating Temperature
- 0°C to 40°C (32°F to 104°F)

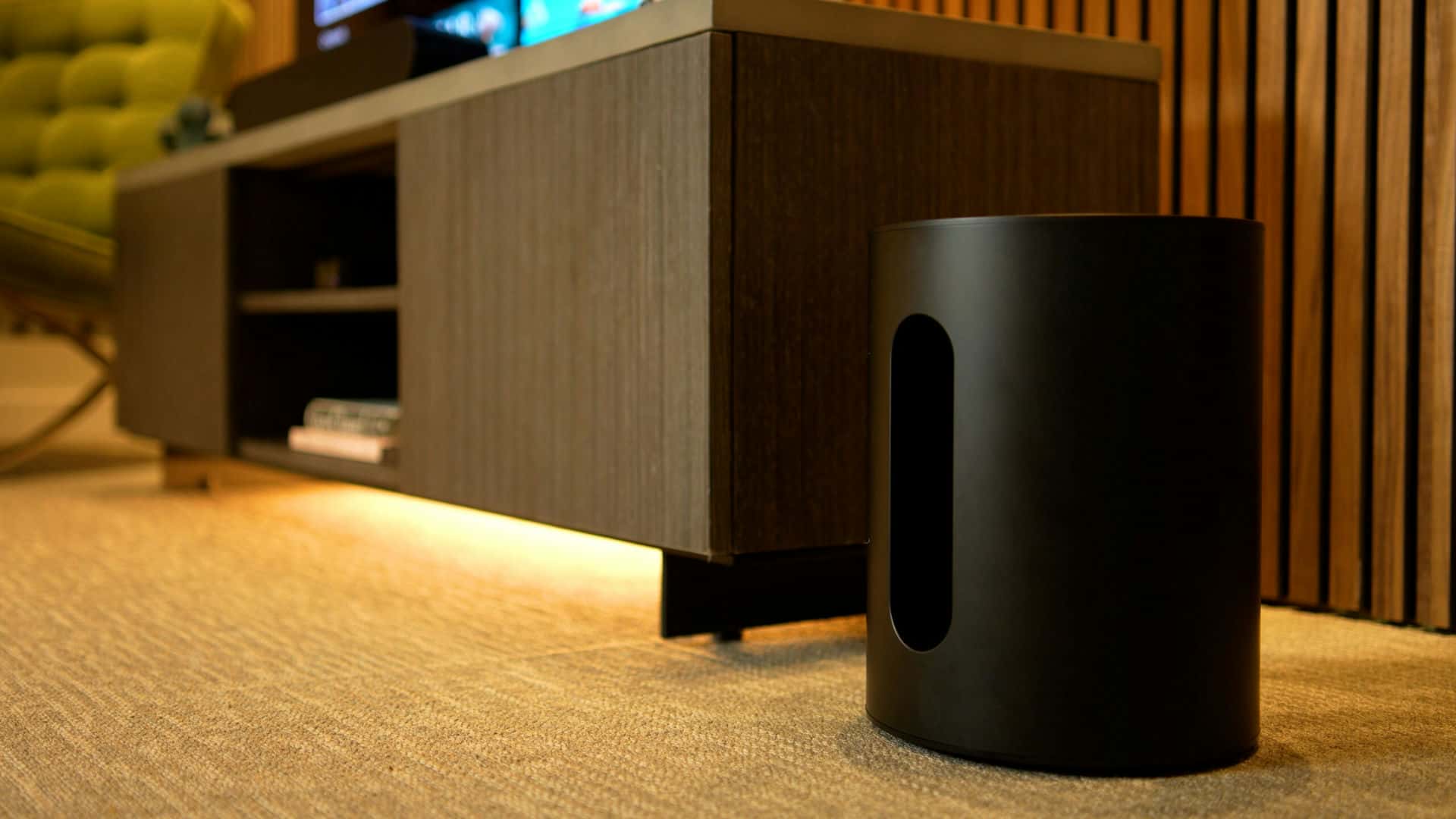

Sub Mini
Unlock new levels of entertainment by pairing Sub Mini with Beam or Ray. The 5 GHz Wi-Fi connection ensures faster audio transmission, so your movies, shows, and games feature high-quality, perfectly synced sound.
More Immersive Music
You’ll never miss a beat — hear more nuance in every note when you pair Sub Mini with Era 100, One, or One SL.
Specifications
SpecificationsAudio
Amplifiers
- Two precisely tuned Class D digital amplifiers matched to the subwoofer’s unique acoustic architecture.
Woofers
- Dual 6-inch woofers face inward for optimal force cancellation and tighter bass.
Enclosure
- Sealed cabinet design eliminates distortion and enhances bass response.
Frequency Response
- Down to 25 Hz
Equalizer
- Audio settings automatically balance Sub Mini with your paired Sonos products. Use the Sonos app to adjust bass, treble, and volume.
Trueplay Tuning
- This software measures your room’s acoustics and precisely tunes your Sonos system. Requires a supported iOS device.
Details + Dimensions
Dimensions
- 230 x 305 mm
Weight
- 6.35 kg (14 lbs)
Colors
- Black & White
Finish
- Matte
Power & Connectivity
Wi-Fi
- Connect to Wi-Fi using any 802.11a/b/g/n 2.4 or 5 GHz router with broadcast support.
Ethernet
- 10/100 Ethernet port for wired connection to your router.
Voltage
- 100–240 V, 50/60 Hz internal power supply
Operating Temperature
- 0°C to 40°C (32°F to 104°F)
